Tubular Heaters

Tubular heaters are the most versatile and widely used source of electrical heat for industry, commercial and scientific applications.
They can be designed in a wide range of electrical ratings, diameters, lengths, terminations and sheath materials.
Mounting flanges, bushes, terminal enclosures can be fitted to suit all installation applications.

Specification

Diameters 6.3mm
8.0 mm
10.7 mm
Sheath Materials Incoloy 800, Stainless steel type 316, 304, 321, Titanium
Threaded Hex Fittings 1” BSP Brass, Stainless Steel
1 ¼” BSP Brass, Stainless Steel
1 ½” BSP Brass, Stainless Steel
2” BSP Brass, Stainless Steel
Termination Enclosures 100 mm dia x 100 mm High powder coated spun box
100 mm x 100mm PVC IP65 enclosures

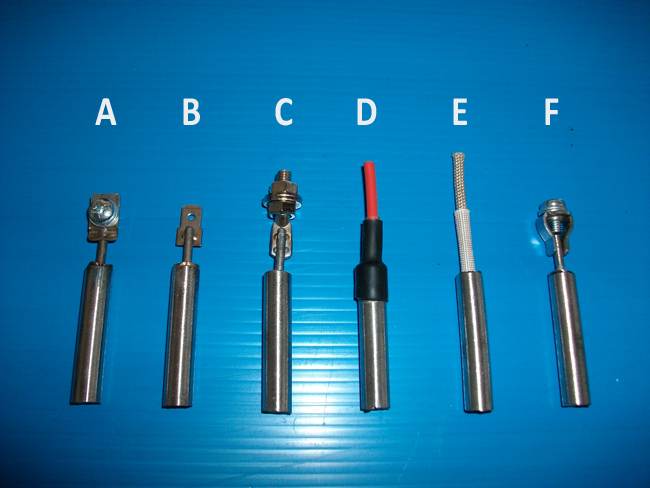

Termination

  • Utilux H1858
  • Utilux H947
  • LX 12782 weld stud
  • Silicon rubber ( defrost seal)
  • Nickle/ Fiberglass lead
  • Utilux H1243

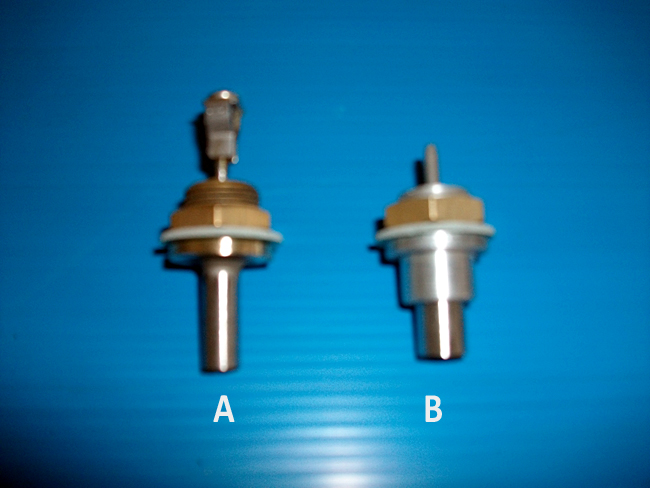

Mounting Glands

  • Weld on type (watertight) 3/8” BSP x 16 mm long
  • Crimp Type 3/8” BSP x 16 mm long

Supplied complete with Brass nut & gasket
